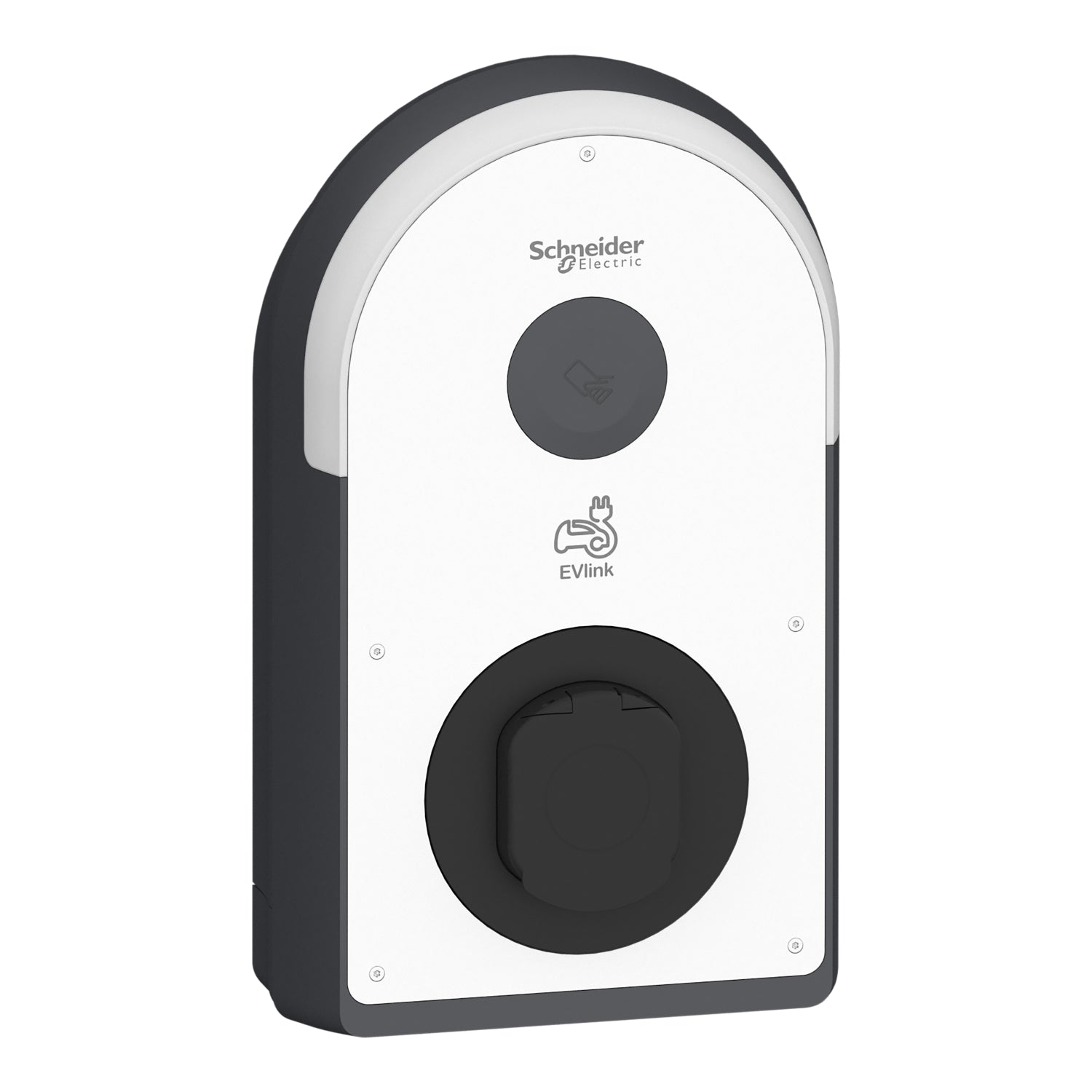

EVlink Pro AC Metal Charger 22kW 32A 3P+N T2S RCD BEV MNX

Sale price€1.429,89 EUR

✅ 22kW three-phase power (3P+N): Designed for IEC61851-1 compliant electric vehicles, offering fast and efficient charging.
✅ Type 2 socket with shutter (T2S): Silver-plated contacts for maximum safety and to prevent overheating.
✅ Advanced protection: Includes RCD type B-EV to detect electrical faults and MNx auxiliary for low voltage tripping.
✅ Smart Management: Configuration via Bluetooth with the eSetup app and support for OCPP 1.6 protocol.
✅ Flexible Access Control: Support RFID/NFC cards or free use configuration.
✅ Robust design (IP55, IK10): Ideal for indoor and outdoor installations, withstanding temperatures from -30°C to 50°C.
✅ Energy optimization: Scheduled start and power limiting functions for efficient charging.
✅ Versatility in installation: Wall, pedestal or cabinet mounting, adapting to any environment.

Maximum protection with RCD type B-EV: detects electrical faults for safe charging at all times.

Need help with installation?

Leave it to the experts and start charging today.

Contact us

You may also like

Main Documents

EVlink Pro AC 22kW Charger

Product Data Sheet →

Preventive maintenance guide →

Checklist →

Instruction Sheet →

Key Features

The EVlink Pro AC Metal 22kW charger is a three-phase (3P+N) solution designed to offer efficiency, safety and flexibility in electric vehicle charging. Compliant with IEC61851-1, it provides up to 22kW of power, making it ideal for residential, commercial and fleet applications.

Its Type 2 shuttered (T2S) output, with silver-plated contacts, guarantees a secure connection, minimising the risk of overheating and ensuring durability. The integration of a B-EV type RCD device and an MNx auxiliary for low voltage tripping reinforce the advanced protection against electrical faults.

The station allows flexible access control configurations via RFID/NFC card authentication or in free mode. Its parameters are set via the eSetup app using Bluetooth or by integrating with EcoStruxure EV Charging Expert. In addition, it supports the OCPP 1.6 protocol, facilitating remote management and monitoring, ideal for individual or grouped operations.

With a robust design and IP55 and IK10 certification, it can withstand adverse weather conditions, shocks and extreme temperatures (-30°C to 50°C). Its mounting is versatile, allowing installation on a wall, pedestal or cabinet, depending on the user's needs. It also supports cable feeding from the rear, top or bottom.

Advanced features such as scheduled start and power limiting optimize energy consumption, ensuring efficient use of resources. With CE and EV Ready certifications, this charger is reliable, safe and prepared to operate in a wide variety of environments.

Range

EVlink

Product name

EVlink Pro AC

Type of product or component

charging station

Short name of the team

EVB3

Type of communications network

Ethernet
Bluetooth
3G/4G modem optional
Modbus TCP

Connector type

2 RJ45 for Ethernet LAN connection

Communication port protocol

OCPP 1.6

Communication service

JSON smart charging for OCPP 1.6

Mode of operation

Clustered architecture
Only

Function available

Diagnostic capabilities
Detailed cargo records
Load management
