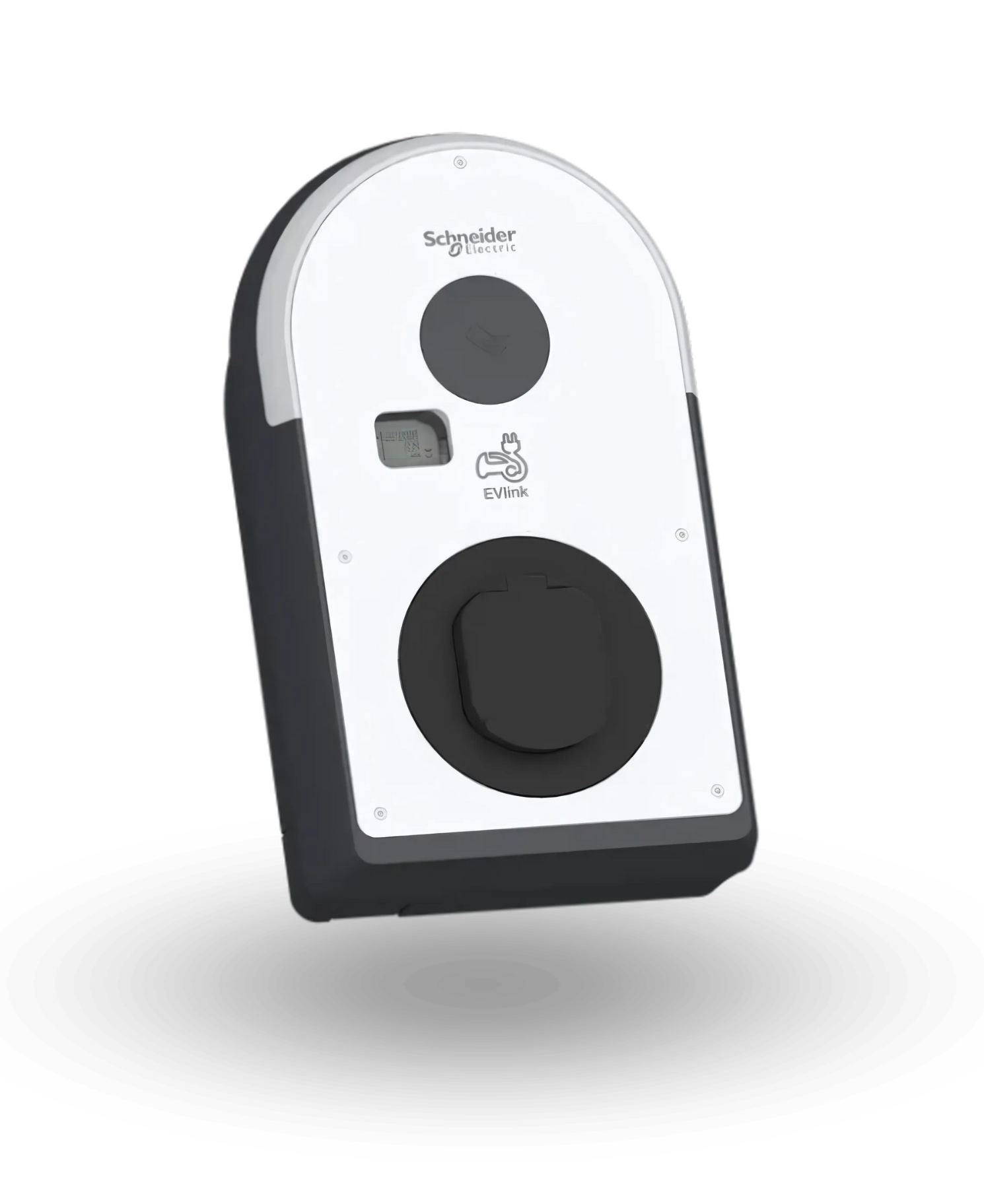

EVlink Pro AC Metal Charger 22kW 32A 3P+N T2S RDC-DD 6mA MID Meter
✅ 22kW three-phase power (3P+N) for fast and efficient charging of electric vehicles compatible with IEC61851-1 standard.
✅ Type 2 power socket with shutter (T2S) , offering a safe and reliable connection.
✅ Advanced Protection : 6mA Residual Direct Current Detection (RDC-DD) and built-in MID meter for accurate consumption measurement.
✅ Flexible access control using RFID/NFC cards or free-use configuration, adapting to various security needs.
✅ LAN connectivity with two Ethernet ports and OCPP 1.6 protocol , facilitating efficient remote monitoring and management.
✅ Robust design (IP55, IK10) , suitable for indoor and outdoor installations, with wall, pedestal or cabinet mounting options.
✅ Energy optimization functions : scheduled start and power limitation during charging, promoting efficient consumption.
✅ 22kW three-phase power (3P+N) for fast and efficient charging of electric vehicles compatible with IEC61851-1 standard.
✅ Type 2 power socket with shutter (T2S) , offering a safe and reliable connection.
✅ Advanced Protection : 6mA Residual Direct Current Detection (RDC-DD) and built-in MID meter for accurate consumption measurement.
✅ Flexible access control using RFID/NFC cards or free-use configuration, adapting to various security needs.
✅ LAN connectivity with two Ethernet ports and OCPP 1.6 protocol , facilitating efficient remote monitoring and management.
✅ Robust design (IP55, IK10) , suitable for indoor and outdoor installations, with wall, pedestal or cabinet mounting options.
✅ Energy optimization functions : scheduled start and power limitation during charging, promoting efficient consumption.
Fast and precise charging with 22 kW, backed by MID measurement and full protection at every connection.
Main Documents
Key Features
The EVlink Pro AC Metal 22kW charger is a three-phase (3P+N) solution designed to provide fast and efficient charging to electric vehicles that comply with the IEC61851-1 standard. It is equipped with a Type 2 socket with shutter (T2S), ensuring a safe and reliable connection for the user.
This device incorporates advanced protection, including 6 mA Residual Direct Current Detection (RDC-DD) and an integrated MID meter, ensuring accurate measurement of energy consumption and compliance with current regulations.
Access control is flexible, allowing authentication via RFID/NFC cards or free-use configuration, adapting to various security and management needs. In addition, its LAN connectivity with two Ethernet ports and compatibility with the OCPP 1.6 protocol facilitate remote monitoring and management, integrating efficiently into existing load management systems.
Featuring a rugged design, certified to IP55 and IK10, this charger is suitable for both indoor and outdoor installations, withstanding harsh environmental conditions. It offers wall, pedestal or cabinet mounting options, providing flexibility in installation based on user needs.
To optimize energy consumption, the charger has functions such as scheduled start and power limitation during charging, allowing efficient energy management and reducing operating costs.
EVlink
EVlink Pro AC
charging station
EVB3
2014/32/EU - measuring instruments directive (MID)
Ethernet
Bluetooth
3G/4G modem optional
Modbus TCP
2 RJ45 for Ethernet LAN connection
OCPP 1.6
JSON smart charging for OCPP 1.6
Clustered architecture
Only
Diagnostic capabilities
Detailed cargo records
Load management
Discover All the Details
Product Specifications
Complementary
Current Sensor Compatibility
- EVlink EcoStruxure EV Charging Expert
- EVlink EVlink Pro AC Metal
- EcoStruxure EcoStruxure EV Advisor
Installation Type
- Inside
- Abroad
Equipment Supplied
- 1 integrated residual direct current detection device (RDC-DD)
- 1 integrated energy meter
- 1 integrated MID meter
Accuracy Class of Energy Meter
- Class 1
Type of Protection Device
- Residual direct current detection device (RDC-DD) - 6 mA
Description of the Poles
- 3P+N for power circuit
Mounting Mode
- Wall mounted
- Wall mounted - cable type: enclosure kit
- Standing - Cord Type: Pendant
- Standing - Cable Type: Enclosure Kit
Mounting Bracket
- Pendant, order separately
- Enclosure kit, please order separately
Cable Entry
- Bottom entrance
- Top entry
- Rear entry
[Us] Assigned Supply Voltage
- 380...415 V AC 50/60 Hz
Nominal Output Power
- 22kW 32A 380...415V
Number of Sockets
- 1
Output Type
- T2 front with shutter power socket / silver plated contacts
Access Control System
- RFID card according to ISO/IEC 14443 A and B
- RFID card according to ISO/IEC 15693
- NFC card
- Free access
RFID Compatible Technology
- MIFARE Classic
- MIFARE Ultralight
- MIFARE Plus
NFC Frequency
- 13.56 MHz
NFC Tag Type
- Type 1
- Type 2
- Type 4
- Type 5
Grounding System
- TT
- TN-S
- TN-CS
- IT (single phase network only allowed, 400V 3 phases network prohibited)
Terms of Use
- 3x230VAC (ph-ph) distribution forbidden
Number of Entries
- 3
Entry Type
- Binary for Power Limiter Closing Contact
- Binary for delayed loading Closing contact
- Binary for vehicle detection Closing contact
Control Type
- Can be controlled remotely
Local Signs
- 1 green LED light strip, function: available
- 1 blue LED light strip, function: charging
- 1 red LED light strip, function: error indication
Rules
- EN/IEC 61851-1:ed. 3
- EN/IEC 62196-1:ed. 2
- EN/IEC 62196-2:ed. 1
- EN 61000-6-2:2019
- EN/IEC 61000-6-3:2007
- EN/IEC 61000-6-3:2011/A1
- IEC 60884-1
- NF C 61314
- ISO 15118
Product Certifications
- EV Ready
- EC
Maximum Operating Altitude
- 2000 m without reduction of nominal power
Dimensions
- Height: 529 mm
- Width: 317 mm
- Depth: 153 mm
Product Weight
- 7.2 kg
Color
- Front, state 1 white - cable type: RAL 9003
- Housing, condition 1 dark grey - cable type: RAL 7016
- Back, condition 1 black - cable type: RAL 9005
Around
Degree of Protection
- IP : IP55
- IK : IK10
Ambient Temperature
- Operation : -30…50 °C
- Storage : -40…80 °C
Relative Humidity
- 5…95 %
Packaging Units
Package unit type 1 : PCE
Number of units in package 1 : 1
Package 1 Height : 28,000 cm
Package 1 Width : 35,700 cm
Package 1 Length : 57,500 cm
Package 1 Weight : 8,489 kg
Package unit type 2 : P12
Number of units in package 2 : 4
Package 2 Height : 71,000 cm
Package 2 Width : 80,000 cm
Package 2 Length : 120,000 cm
Package 2 Weight : 41,000 kg
