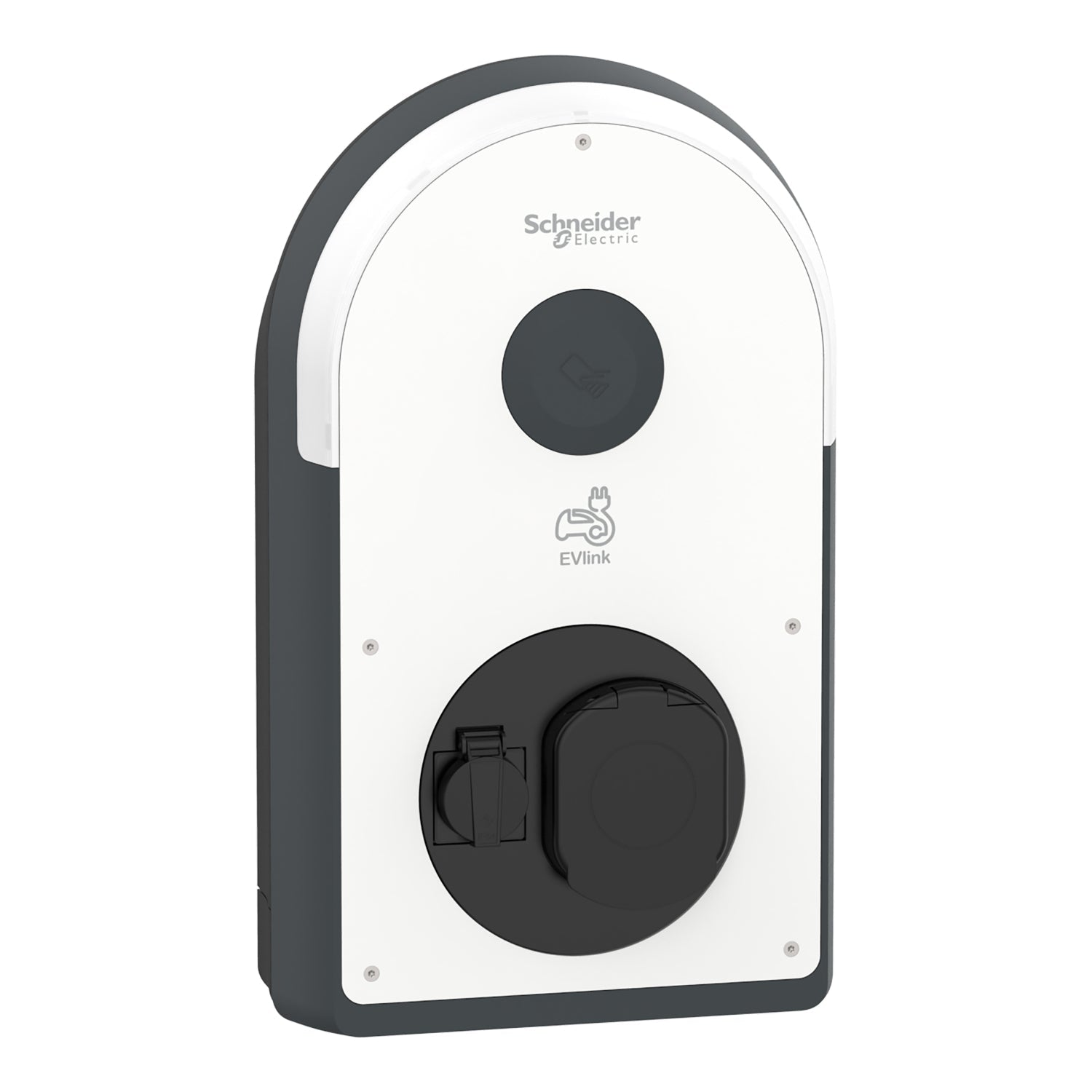

EVlink Pro AC Metal Charger 22kW 32A T2S TF-S RDC-DD 6mA MID Meter
✅ Three-phase charging (22 kW, 3P+N): Compliant with IEC61851-1, ideal for residential, commercial and fleet applications.
✅ Two front outputs: Type 2 base with shutter (T2S) and Type F base (TF), with silver-plated contacts to prevent overheating.
✅ MID certified meter: Allows accurate billing of the energy consumed.
✅ RDC-DD (6 mA): Advanced protection that detects electrical faults in direct current.
✅ Flexible access control: Compatible with RFID/NFC cards or free-use configurations.
✅ Advanced remote management: Monitoring and configuration using OCPP 1.6 protocol and LAN connectivity with two Ethernet ports.
✅ Robust design (IP54, IK10): Dust, water and shock resistant, ideal for indoor and outdoor use.
✅ Energy optimization: Functions such as scheduled start and power limitation for efficient consumption management.
✅ Versatile Installation: Compatible with wall, pedestal or cabinet mounting, adapting to any environment.
✅ Three-phase charging (22 kW, 3P+N): Compliant with IEC61851-1, ideal for residential, commercial and fleet applications.
✅ Two front outputs: Type 2 base with shutter (T2S) and Type F base (TF), with silver-plated contacts to prevent overheating.
✅ MID certified meter: Allows accurate billing of the energy consumed.
✅ RDC-DD (6 mA): Advanced protection that detects electrical faults in direct current.
✅ Flexible access control: Compatible with RFID/NFC cards or free-use configurations.
✅ Advanced remote management: Monitoring and configuration using OCPP 1.6 protocol and LAN connectivity with two Ethernet ports.
✅ Robust design (IP54, IK10): Dust, water and shock resistant, ideal for indoor and outdoor use.
✅ Energy optimization: Functions such as scheduled start and power limitation for efficient consumption management.
✅ Versatile Installation: Compatible with wall, pedestal or cabinet mounting, adapting to any environment.
Accurate measurement instantly: Monitor your energy with the integrated MID meter.
Main Documents
Key Features
The EVlink Pro AC Metal 22 kW with integrated MID meter is a three-phase (3P+N) solution designed to offer precision, safety and versatility in charging electric vehicles compliant with IEC61851-1.
Two front outputs: This model combines a Type 2 base with shutter (T2S) for three-phase fast charging up to 22 kW and a single-phase Type F (TF) base of 2.3 kW. Both bases have silver-plated contacts to ensure connections reliable and avoid overheating.
MID Certified Meter: Provides accurate measurements of energy consumption with Class 1 certification, ideal for applications requiring billing or detailed monitoring of energy consumption.
RDC-DD (6 mA) and auxiliary MNx: Advanced protection that ensures the detection of electrical faults in direct current, complemented by an automatic low voltage trip system.
Flexible control: Compatible with RFID/NFC cards for access control or free-use configurations, adapting to the needs of public or private environments.
Advanced Remote Management: Allows remote monitoring, supervision and configuration using OCPP 1.6 protocol, with dual LAN connectivity that ensures efficient management in clustered systems or individual stations.
Robust Design: Certified with IP54 and IK10, it is designed to withstand harsh weather conditions and shocks, making it ideal for indoor and outdoor applications.
Energy optimization: Advanced features such as scheduled start and power limiting ensure energy efficiency and service continuity in shared facilities.
Versatile Installation: Compatible with wall, pedestal or cabinet mounting, and allows wiring from the rear, top or bottom, facilitating integration into any space.
EVlink
EVlink Pro AC
charging station
EVB3
2014/32/EU - measuring instruments directive (MID)
Ethernet
Bluetooth
3G/4G modem optional
Modbus TCP
2 RJ45 for Ethernet LAN connection
OCPP 1.6
JSON smart charging for OCPP 1.6
Clustered architecture
Only
Diagnostic capabilities
Detailed cargo records
Load management
Discover All the Details
Product Specifications
Complementary
Current Sensor Compatibility
- EVlink EcoStruxure EV Charging Expert
- EVlink EVlink Pro AC Metal
- EcoStruxure EcoStruxure EV Advisor
Installation Type
- Inside
- Abroad
Equipment Supplied
- 1 integrated residual direct current detection device (RDC-DD)
- 1 integrated energy meter
- 1 integrated MID meter
Accuracy Class of Energy Meter
- Class 1
Type of Protection Device
- Residual direct current detection device (RDC-DD) - 6 mA
Description of the Poles
- 3P+N for power circuit
- 1P+N for power circuit
Mounting Mode
- Recessed wall mount
- Wall mounted - cable type: enclosure kit
- Standing - Cord Type: Pendant
- Standing - Cable Type: Enclosure Kit
Mounting Bracket
- Pendant , order separately
- Enclosure kit , please order separately
Cable Entry
- Bottom entrance
- Top entry
- Rear entry
[Us] Assigned Supply Voltage
- 380...415 V AC 50/60 Hz
- 220...240 V AC 50/60 Hz
Nominal Output Power
- 22kW 32A 380...415V
Number of Sockets
- 2
Output Type
- T2 front with shutter power socket / silver plated contacts
- Front TF power socket
Access Control System
- RFID card according to ISO/IEC 14443 A and B
- RFID card according to ISO/IEC 15693
- NFC card
- Free access
RFID Compatible Technology
- MIFARE Classic
- MIFARE Ultralight
- MIFARE Plus
NFC Frequency
- 13.56 MHz
NFC Tag Type
- Type 1
- Type 2
- Type 4
- Type 5
Grounding System
- TT
- TN-S
- TN-CS
- IT ( only for single-phase networks, 400 V 3-phase networks not permitted )
Terms of Use
- 3x230VAC (ph-ph) distribution forbidden
Number of Entries
- 3
Entry Type
- Binary for Power Limiter Closing Contact
- Binary for delayed loading Closing contact
- Binary for vehicle detection Closing contact
Control Type
- Can be controlled remotely
Local Signs
- 1 green LED light strip , function: available
- 1 blue LED light strip , function: charging
- 1 red LED light strip , function: error indication
Rules
- EN/IEC 61851-1:ed. 3
- EN/IEC 62196-1:ed. 2
- EN/IEC 62196-2:ed. 1
- EN 61000-6-2:2019
- EN 61000-6-3:2007
- EN 61000-6-3:2011/A1
- IEC 60884-1
- NF C 61314
- ISO 15118
Product Certifications
- EV Ready
- EC
Maximum Operating Altitude
- 2000 m without reduction of nominal power
Dimensions
- Height: 529 mm
- Width: 317 mm
- Depth: 158 mm
Product Weight
- 7.2 kg
Color
- Front: condition 1 white - cable type: RAL 9003
- Housing: condition 1 dark grey - cable type: RAL 7016
- Back: condition 1 black - cable type: RAL 9005
Around
Degree of Protection
- IP54
IK Protection Grade
- IK10
Ambient Operating Temperature
- -30…50 °C
Ambient Storage Temperature
- -40…80 °C
Relative Humidity
- 5…95 %
Packaging Units
Package 1:
- Unit Type: PCE
- Number of Units: 1
- Height: 28,500 cm
- Width: 36,000 cm
- Length: 57,000 cm
- Weight: 9,600 kg
Package 2:
- Unit Type: P06
- Number of Units: 4
- Height: 72,000 cm
- Width: 60,000 cm
- Length: 80,000 cm
- Weight: 43,500 kg
