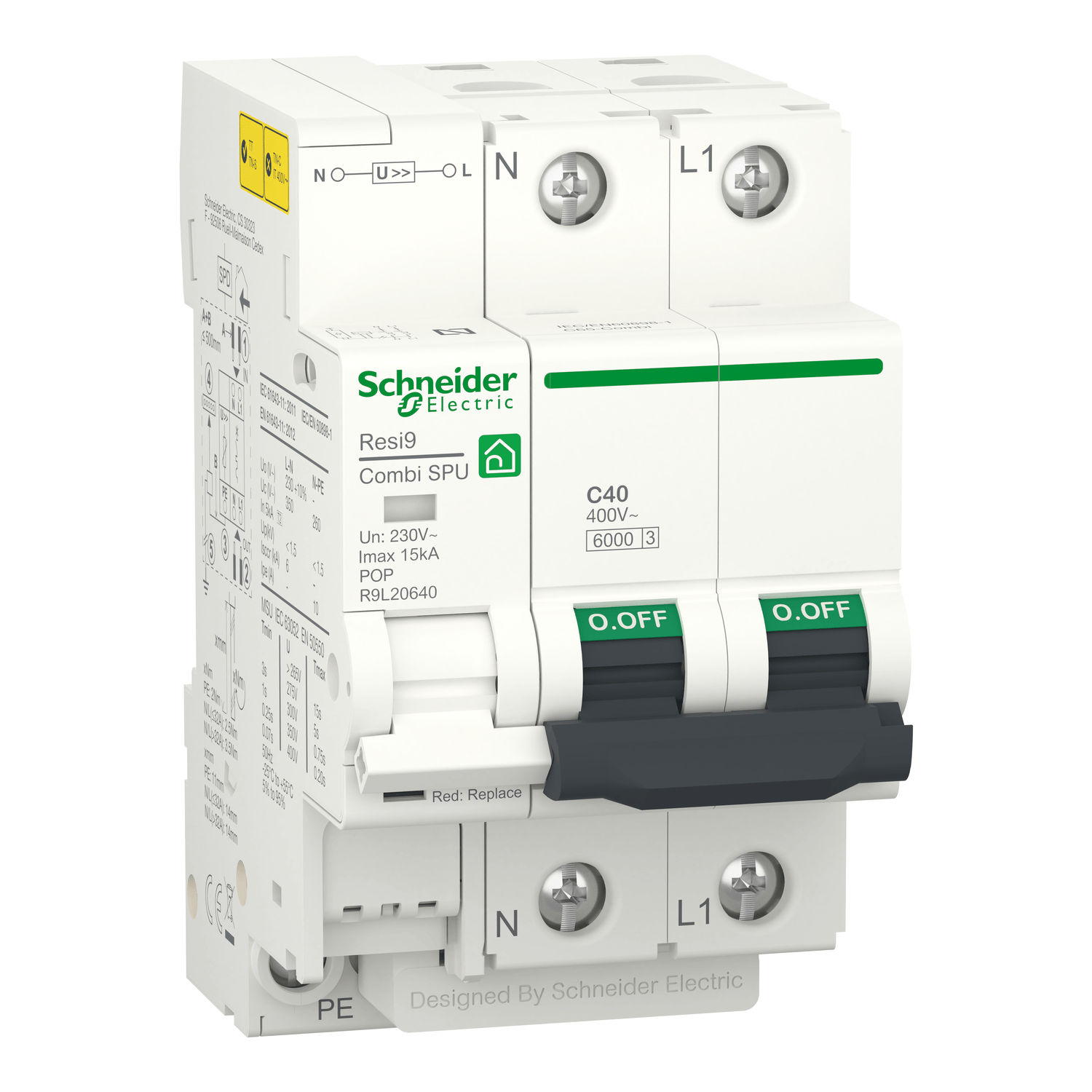

Transient and permanent overvoltage limiter IGA; Resi9 Combi; 1P+N; 40A
Protect your installations with the Schneider Electric Resi9 Combi 1P+N 40 A Limiter . This device combines protection against overvoltages, short circuits and overloads in a compact and easy-to-install design. Ideal for homes and businesses, it guarantees safety and continuity in the electrical supply, avoiding damage to your equipment. The reliable solution for complete protection.
Protect your installations with the Schneider Electric Resi9 Combi 1P+N 40 A Limiter . This device combines protection against overvoltages, short circuits and overloads in a compact and easy-to-install design. Ideal for homes and businesses, it guarantees safety and continuity in the electrical supply, avoiding damage to your equipment. The reliable solution for complete protection.
The best defense against power surges and electrical overloads.
Main Documents
Discover All the Details
Product Specifications
✅ Protection against short circuits and overloads : Safeguard your electrical installations against faults and excessive currents.
✅ Surge protection : Protects against voltage spikes caused by lightning or fluctuations in the power grid.
✅ Permanent overvoltage trip : It includes a unit that disconnects the supply in the event of prolonged overvoltages, avoiding damage to the equipment.
✅ All-in-one design : Combines multiple protection functions in a single device, improving the self-protection of the circuits and facilitating installation.
Major
Product Range
Resi9
Short name of the team
Combi SPU
Product name
Resi9 CX
Type of product or component
Circuit breaker with combined surge protection
Function
For current > 0.1 A
Number of poles
1P + N
Number of protected poles
1
Neutral position
Left
[In] Rated current
40 A
Network type
AC
Trigger unit technology
Thermal-magnetic
Curve code
C
Cutting capacity
6000 A Icn according to EN/IEC 60898-1
Type of control
Handle
Mounting type
Fixed
Mounting bracket
DIN rail
Quality labels
EC
AENOR
9mm steps
6
Height
74 mm
Width
54 mm
Depth
93 mm
Product weight
0.33 kg
Color
White - cable type: RAL 9003
Mechanical durability
20000 cycles
Electrical durability
10000 cycles
Ambient operating temperature
-25…55 °C
Ambient storage temperature
-40…70 °C
Response time
< 25 ns
Connections - terminals
Tunnel type terminal (PE) 1…10 mm² rigid
Tunnel type terminal (PE) 0.5…6 mm² flexible
Tunnel type terminal (L/N) 1.5…25 mm² rigid
Tunnel type terminal (L/N) 1.5…16 mm² flexible
Tightening torque
2 Nm PE
3.5 Nm L/N
Complementary
Network frequency
50 Hz
[Ue] Nominal operating voltage
230V AC 50Hz
Grounding system
- TT
- TN-S
[Uc] Maximum continuous operating voltage
- Common mode, state 1: 260 V AC N/PE
- Differential mode, state 1: 340 VAC L/N
[Up] Voltage protection level
- Common mode: <1.5 kV type 2 N/PE
- Differential mode: <1.5 kV type 2 L/N
Nominal discharge intensity
5 kA
Maximum output intensity
15 kA
Trigger voltage threshold
275 V
Local signage
- Surge discharge signaling, state 1: LED (green/red)
- Voltage release signaling, state 1: flag (white/red)
Contact position indicator
Yeah
Packaging Units
Package unit type 1
- Unit : PCE
- Number of units : 1
- Height : 10.0 cm
- Width : 11.0 cm
- Length : 25.5 cm
- Weight : 428.0 g
Package unit type 2
- Unit : S03
- Number of units : 24
- Height : 30.0 cm
- Width : 30.0 cm
- Length : 40.0 cm
- Weight : 10,713 kg
Package unit type 3
- Unit : P06
- Number of units : 288
- Height : 105.0 cm
- Width : 60.0 cm
- Length : 80.0 cm
- Weight : 137.056 kg
